synthetic polymer Macro Fiber marcofiber macrofibre

Provides good impact,fatigue,shrinkage control and ductility in all grade concretes.

Cost saving,Is easier to use,to disperse and safe to handle.

Can be used in highly corrosive circumstance.

The surface has been embossed,which greatly improves the cohesive force between fibres and concrete,and also boosts shrinkage resistance and crack resistance.

Quantity:



Inquire Add to Basket

Model:
ELT- EM0015
Brand:
Elite-indus
Code:
5503400000
Minimum Tensile Strength:
>550 MPa
Modulus:
>9000 Mpa
Fibre Length:
L:48 mm /55 mm /65mm
Melt Point:
170℃
Density:
0.91g/cm3
Melt flow:
3.5
Acid&Alkali Resistance:
Excellent
Moisture Content:
≤0%
Appearance:
Appearance

Product Description

synthetic polymer macrofiber
synthetic polymer macrofibre
synthetic structural fiber

The fibers are mainly made of Polypropylene/ polyethylene.

Features

◆ Provides good impact,fatigue,shrinkage control and ductility in all grade concretes.
◆ Cost saving,Is easier to use,to disperse and safe to handle.
◆ Can be used in highly corrosive circumstance.

◆ The surface has been embossed,which greatly improves the cohesive force between fibres and concrete,
and also boosts shrinkage resistance and crack resistance.

◆ The toughness of macro synthetic fibre is less stronger than steel fibre.
But test has shown slabs on grade and pre-cast concrete predominately require a dosage rate of between 25kg-40kg of steel fibers per cubic meter,
in comparison,using between 3kg-10kg of macro synthetic fibre per cubic meter of concrete.

Synthetic fibers achieve greater strength and ductility in the matrix.

Estimating Dosage

The dosage rate is dependent on the application however the minimum dosage range is 2kg-6kg/m3.

Typical Application

Shotcrete, and engineering industries, concrete project,like:
◆ Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
◆ Thin walled precast (septic tanks, vaults, walls, etc.)
◆ Shotcrete for tunnel linings, pool construction and slope stabilization
◆ Pavements and white-toppings

Technical Information

Minimum Tensile Strength	>550 MPa
Modulus	>9000 Mpa
Fibre dimension	L:48 mm /55 mm /65mm;
Melt Point	170℃
Density	0.91g/cm³
Melt flow	3.5
Acid&Alkali Resistance	Excellent
Moisture Content	≤0%
Appearance	Appearance

Packing

5kg/box, 1200-1300kg/pallet, 12800kg/20’ container, 25800kg/40’ container.

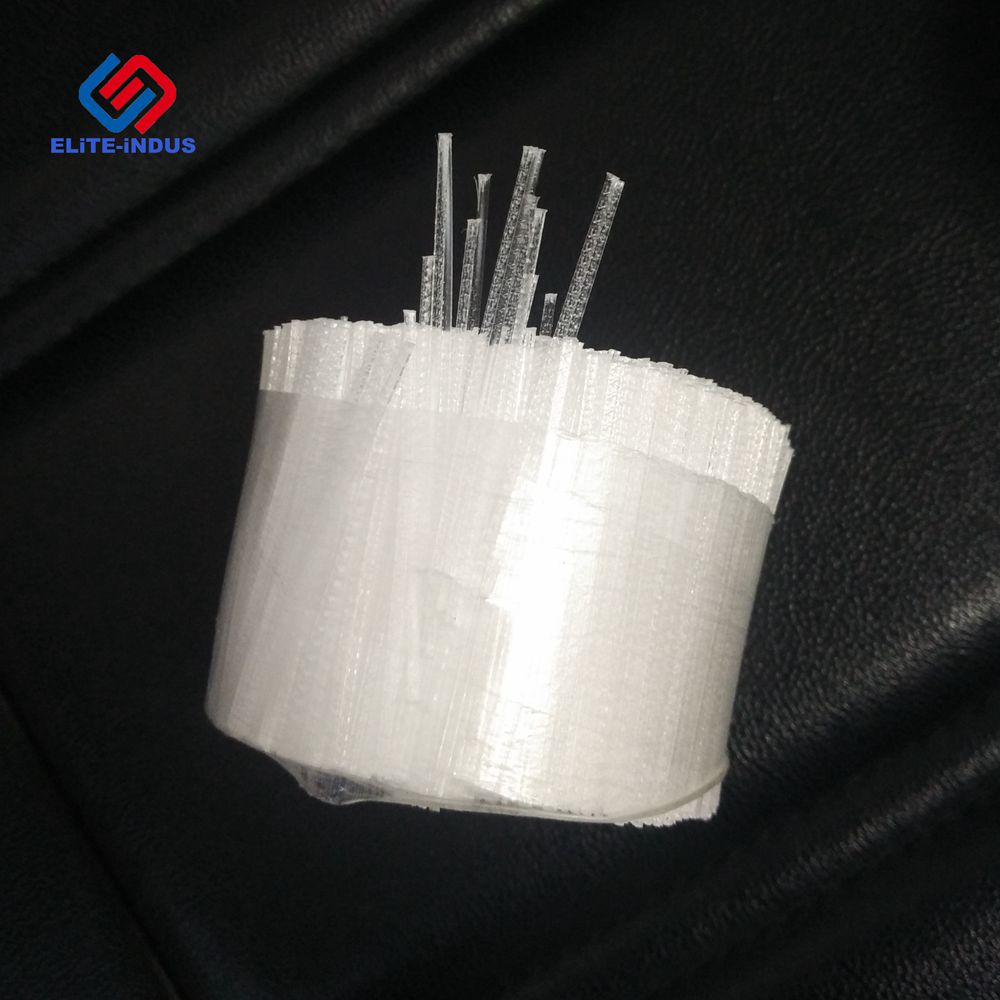

macrofiber embossed water soluble packing

How should the fiber be used
The fibers are wrapped with water-soluble film and uniquely packaged in water soluble paper boxes.Just throw the whole boxes of fibers into the concrete mixture, the boxes and film will dissolve within seconds, leaving the fibers to disperse evenly throughout the mixture.
