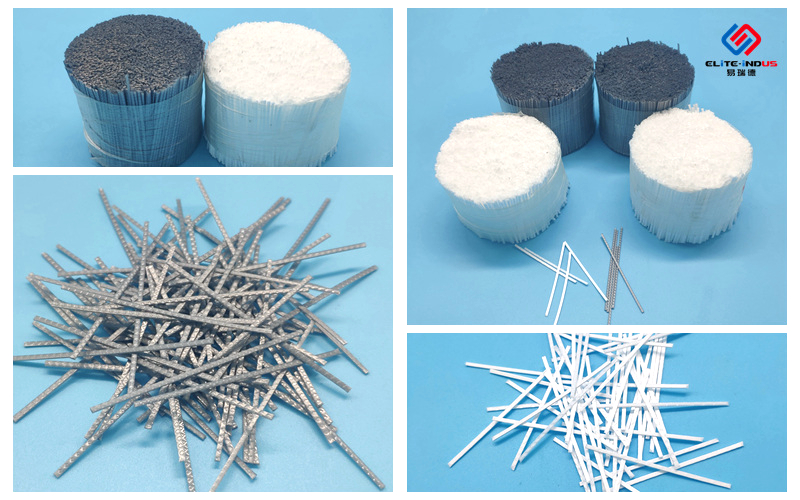

Synthetic Polypropylene Fiber for Shotcrete
The fibres are Made of Polypropylene.
Features Provides good impact,fatigue,shrinkage control and ductility in all grade concretes.Cost saving,Is easier to use,to disperse and safe to handle.Can be used in highly corrosive circumstance.The surface has been embossed,which greatly improves the cohesive force between fibres and concrete,and also boosts shrinkage resistance and crack resistance.The toughness of macro synthetic fibre is less stronger than steel fibre. But test has shown slabs on grade and pre-cast concrete predominately require a dosage rate of between 25kg-40kg of steel fibres per cubic meter, in comparison,using between 3kg-10kg of macro synthetic fibre per cubic meter of concrete.
The dosage rate is dependent on the application however the minimum dosage range is 3kg/m3-6kg/m3.
Features
â—† Provides good impact,fatigue,shrinkage control and ductility in all grade concretes.
â—† Cost saving,Is easier to use,to disperse and safe to handle.
â—† Can be used in highly corrosive circumstance.
â—† The surface has been embossed,which greatly improves the cohesive force between fibres and concrete,
and also boosts shrinkage resistance and crack resistance.
â—† The toughness of macro synthetic fibre is less stronger than steel fibre.
But test has shown slabs on grade and pre-cast concrete predominately require a dosage rate of between 25kg-40kg of steel fibers per cubic meter,
in comparison,using between 3kg-10kg of macro synthetic fibre per cubic meter of concrete.
Synthetic fibers achieve greater strength and ductility in the matrix.
Estimating Dosage
The dosage rate is dependent on the application however the minimum dosage range is 2kg-6kg/m3.
Typical Application
Shotcrete, and engineering industries, concrete project,like:
â—† Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
â—† Thin walled precast (septic tanks, vaults, walls, etc.)
â—† Shotcrete for tunnel linings, pool construction and slope stabilization
â—† Pavements and white-toppings
Technical Information
Minimum Tensile Strength>650 MPa
Modulus>10 GPa
Fibre dimension:
L: 47mm / 55mm / 65mm;
T:0.55-0.60mm;
W:1.30-1.40mm
Melt Point: 170ºC
Density: 0.91g/cm3
Melt flow: 3.5
Acid&Alkali Resistance: Excellent
Moisture Content≤0%
Appearance: White, Transparent, Black, Embossed

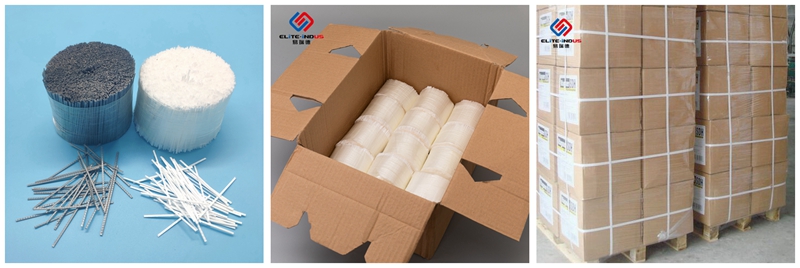

Packing
5kg/box, 1200-1300kg/pallet, 12000kg/20' container, 24000kg/40' container.
Guideline of use
The fibres are wrapped with water-soluble film and uniquely packaged in paper boxes.Then just throw the whole boxes of fibres into the concrete mixture, the boxes and film then dissolve within seconds, leaving the fibres to disperse evenly throughout the mixture.
