ELT-TWIST
ELITE-INDUS
5503400000
Macro Synthetic Fiber ELT-TWIST
Description
ELT-TWIST is a 100% virgin blended copolymer synthetic Structural macro-fiber successfully used as an alternate to steel fibers, welded wire mesh and
conventional reinforcing bars in a wide variety of secondary reinforcement applications.

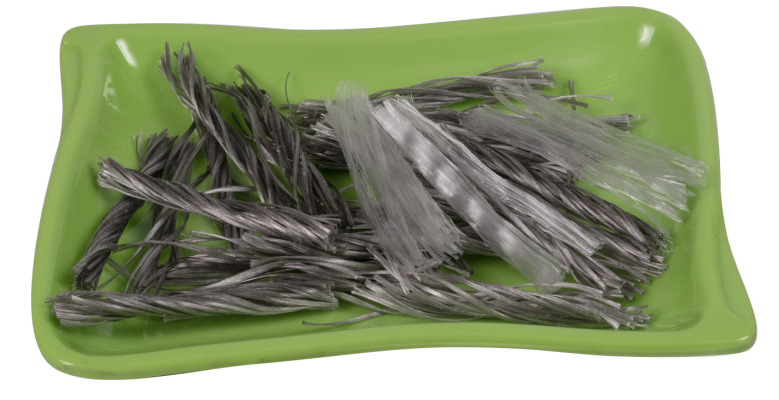

ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.A twisted-bundle
monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.
ELT-TWIST fibers comply with ASTM C1116, Standard Specification for Fiber Reinforced Concrete and Shotcrete, and are specifically used for the reduction of
plastic shrinkage cracks, to improve impact, shatter and abrasion resistance, to increase fatigue resistance, to increase toughness of concrete and provide long term
durability of concrete, structural enhancements and cement based building products.
Functions
1, Increases impact, shatter and abrasion resistance of concrete
2, Reduces segregation, plastic settlement, and shrinkage cracking of concrete
3, Provides three-dimensional reinforcement against macro-cracking
4,Increases overall durability, fatigue resistance and flexural toughness
5, Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control
6, Easily added to concrete mixture at any time prior to placement
Application
Industrial and residential floors
Whitetoppings, bridge decks and pavements
Thin walled pre-cast (septic tanks, vaults, walls, etc.)
Mass concrete
Specification
| Density(g/cm 3 ) | 0.91 +/- 0.01 | Equivalent Dia(mm) | 0.3±0.05 |
| Shape | twist | break tensile Ratio(%) | 8-15 |
| Crack Ratio (%) | 20+/-5 | Melting point ( C. Deg) | 160-170 |
| Tensile Strength (Mpa) | 500 to 800 | Water Absorption | Negligible |
| Elastic Modulus (Mpa) | >3500 | Resistance to acid & alkali | Excellent |
| Material | Virgin Copolymer/Polypropylene | ||
| Length(mm) | 38/48 /54 or as per your request | ||
| Dosage rates will vary depending upon the reinforcing requirements and can range from 2kg/m³ to 5 kg/m³ | |||
Directions for Use
ELT-TWIST fibers can be added to the concrete mixture at any time prior to placement of the concrete. It is generally recommended to add any fiber material
at the ready-mix concrete plant during batching. Fibers must be mixed with concrete for a minimum of three to five minutes at maximum mixing speed,
depending on the mixer type, to ensure complete dispersion and uniformity.
Packing
| Shape | Inner Packing(PE Film Bag) | Outer Packing(Plastic Woven Bag) | 20’gp | 40’HQ |
| Twist | 0.5/1.0kg | 10kg | 5500kg | 12000kg |
| Inner Packing(Water Soluble Paper Bag) | Outer Packing (Carton) | |||
| 0.5/1.0kg | 10kg | 4000kg | 9000kg | |
| Other Packing Can As Per Your Request | ||||
Contact information：
Email: mika@elite-indus.com
Wechat/WhatsApp: 0086-15212447276
