ELT-EMBOSSED
ELITE-INDUS
5503400000

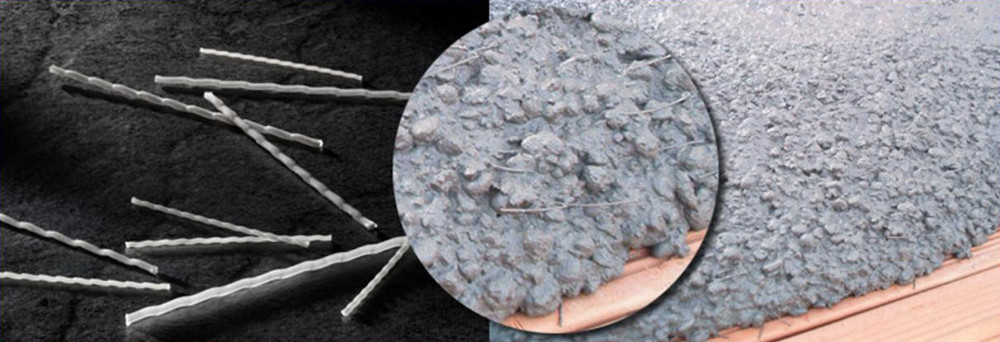

Macro Synthetic Fiber ELT-EMBOSSED
Description
ELT-EMBOSSED is a Structural macro synthetic fiber engineered for use as an alternate to steel fibers and welded wire mesh for precast concrete
and shotcrete reinforcement applications.
ELT-EMBOSSED fibers comply with ASTM C1116, Standard Specification for Fiber Reinforced Concrete and Shotcrete, and are specifically used to
improve impact, shatter and abrasion resistance, to increase fatigue resistance, to increase toughness of concrete and provide long term durability of concrete
and cement based building products. Dosage rates will vary depending upon the reinforcing requirements and can range typically from 2 to 6kg/m³
ELT-EMBOSSED synthetic macro-fibers comply with applicable portions of the International Code Council (ICC) Acceptance Criteria AC32 for synthetic fibers
and can save time and money on construction projects by eliminatingthe purchase, storage, handling, cutting, placing and waste of welded wire mesh. These fibers are
chemically inert and will not corrode.
Functions
â—† Provides good impact,fatigue,shrinkage control and ductility in all grade concretes.
â—† Cost saving,Is easier to use,to disperse and safe to handle.
â—† Can be used in highly corrosive circumstance.
â—† The surface has been embossed,which greatly improves the cohesive force between fibres and concrete,
and also boosts shrinkage resistance and crack resistance.
â—† The toughness of macro synthetic fibre is less stronger than steel fibre. But test has shown slabs on grade
and pre-cast concrete predominately require a dosage rate of between 25kg-40kg of steel fibers per cubic meter,
in comparison,using between 2kg-6kg of macro synthetic fibre per cubic meter of concrete.
Synthetic fibers achieve greater strength and ductility in the matrix
Application
Shotcrete, and engineering industries, concrete project,like:
â—† Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
â—† Thin walled precast (septic tanks, vaults, walls, etc.)
â—† Shotcrete for tunnel linings, pool construction and slope stabilization
â—† Pavements and white-toppings
Specification
| Raw Material | Virgin grade polymer polypropylene | Tensile Strength(MPa): | 600-700 |
| Water Absorbency: | No | Density(g/cm3) : | 0.91+/-0.01 |
| Melting Point(C Deg.) | 160 - 170 | Elastic Modulas(Mpa): | 9000 min |
| Acid & Alkali Resistance | Excellent | Equivalent Diameter | 0.8mm+/-0.2mm |
| Thickness | 0.55mm-0.6mm | Width | 1.3mm-1.4mm |
| Moisture Content | 0.0% | Fiber Type | Embossed |
| Color | White, Black, Gray,Natural | ||
| Length: | 30mm,47mm,48mm,50mm, 55mm, 60mm,65mm or as per request | ||
| Tandard Dosage | 2kg/m3 to 6kg/m3 | ||
Packing
â—† 120-140g/ Water Soluble Film Bundle, 5kgs/Water Soluble Paper Carton
◆ 1200kg/Pallet, 12000kg/20' GP, 1300kg/Pallet26000kg/40' HQ
The fibers are wrapped with water-soluble film and uniquely packaged in water soluble paper boxes.Just throw the whole boxes of
fibers into the concrete mixture,the boxes and film will dissolve within seconds, leaving the fibers to disperse evenly throughout the mixture.
Contact Inforamtion:
Email: mika@elite-indus.com
Wechat/WhatsApp: 0086-15212447276
