ELT- WAVE
Elite-indus
5503400000
Curved Wave Macro Pp Polypropylene Fiber for Concrete Reinforcement Anti-crack
ELITE macro fiber curved wave is a patented polypropylene / polyethylene macro synthetic fiber successfully used to replace steel fibers, welded wire mesh and conventional reinforcing bars in a wide variety of applications.macro fiber curved wave is suitable for concrete and shotcrete, and are specifically used to provide equivalent tensile and bending resistance to conventional reinforcement requirements. Concrete with our macro fiber will have three-dimensional reinforcing with enhanced flexural toughness,impact and abrasion resistance and will also help mitigate the formation of plastic shrinkage cracking in concrete.
Main Technical Specification:
Density(g/cm3) | 0.91 | Elastic Modulas (MPa) | >4000 |
Length(mm) | Normal is 36mm 48mm,54mm | Equivalent Dia(mm) | 0.9mm |
Shape | Curved wave | Crack Ratio(%) | ≤15 +/-5 |
Resistance to acid & alkali | Strong | Water absorbency | No |
Tensile Strength(MPa) | ≥450 | Melt Point, C. Deg. | ≥160 |
Directions for Use:
1. Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.0-3.0 kg per cubic meter of cement concrete( volume ratio is 0.3% ), reinforcement adding amount is 5.5kg/m³ , Compared with adding 47kg of steel fibre, 5.4kg macro synthetic fibre has the same volume ratio to the concrete.
2. Matching Ratio: Usually, it is no need to Change the matching ratio of the concrete.
3. Mixer Adoption: Double-axle horizontal compelling mixer is priority.
4. Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes, fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber completely Mixed.
5. Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same as the normal concrete.

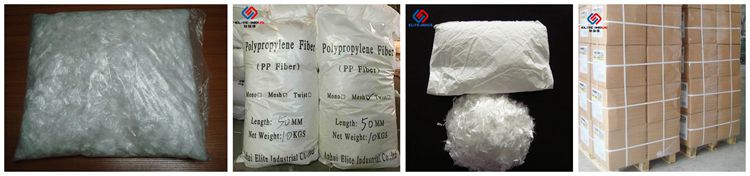

Packing:
1kgs per pe bag, 10kgs/plastic woven bag,
3100kgs/1x20`gp, 7500kgs/1x40`hq without pallet.
Features & Benefits:
Economy, Durable, High Tensile Strength
Compared with steel fiber, our fiber has the advantages of anti-corrosion and wear-resistant reducing 50% cost with same volume to steel fiber.
1. Equivalent strengths to WWM and rebar provided by engineering calculations;
2. Controls and mitigates plastic shrinkage cracking and reduces segregation and bleed-water;
3. Provides three-dimensional reinforcement against micro and macro-cracking;
4. Reduces equipment wear, fiber rebound and increases build-up thickness compared to steel fibers for shotcrete applications;
5. Increases overall durability, fatigue resistance and flexural toughness;
6. Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control;
7. Easily added to concrete mixture at any time prior to placement;
Applications:
•Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
•Thin walled precast (septic tanks, vaults, walls, etc.)
•Shotcrete for tunnel linings, pool construction and slope stabilization
•Pavements and white-toppings
