Introduction:
Gabion Mesh also named Stone Cage Mesh, is a new kind of ecological grid structure successfully applied to water conservancy project, highway, railway engineering, dike protection projects, realized the organic combination of engineering structure and ecological environment well. At the same time it has its own advantages compared with some traditional rigid structure, so it has become the first choice structural style worldwide for protection of river bed, landslide,debris flow and rock fall and environment protection.
GABION SPECIFICATION:
1.Gabion materials: hot dipped galvanized wire and PVC coated galvanized wire ,
PVC color : darkgree, gray ,black

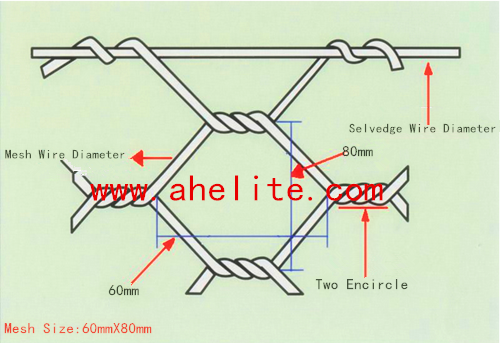

2.Gabion mesh wire diameter: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3.Gabion selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm
4.Gabion mesh Size : 6*8cm,8*10cm,10*12cm,12*15cm
5.Gabion Tie wire/lacing wire : Normal is 2.2mm
6.Gabion Zinc coating : 220-290g/m2
7.Gabion size : 2x1x1m,2x1x0.5m,6x2x0.3m,as your request
8.Gabion With diaphragms
